PA1024C3 Switching Power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä Desk top type switching power supplies/power adapter with AC power cord

Switching Power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä /Comutatie de alimentare/Импульсный блок питания

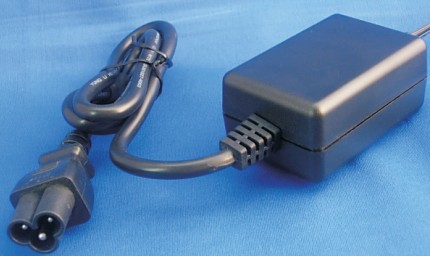

Model: PA1024C3
Desk top type switching power supplies/power adapter with AC power cord
Input:90-264v AC 47-63Hz, 0.3a Max. ; Output voltage: 3-50V DC
Inrush current: 40a Max.
Line Current: 1% Max.
Efficiency: 70-82%
output voltage: 3-4.5v/ Max. 3.0a, output power 15w Max.
output voltage: 4.9-7.0v/ Max, 3.0a, output power 20w Max.
output voltage: 7.1-10.5v/ Max.2.85a, output power 20w Max.
output voltage: 10.6-15.0v/ Max.2.0a, output power 24w Max.
output voltage: 15.1-21.0v Max. 1.6a, output power 24w Max.
output voltage: 21.1-30.0v Max. 1.14a output power 24w Max.
output voltage: 30.1-40.v Max. 0.8a, output power 24w Max.
output voltage: 40.1-50.v Max. 0.6a, output power 24w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
