PA1030C5 Switching power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä Desk type adapter, power supply, adaptor with AC power cord China power supply factory

Switching power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä
/Comutatie de alimentare/Импульсный блок питания

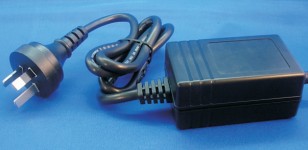

Model: PA1030C5
Desk type adapter, power supply, adaptor with AC power cord
Input:90-264v AC 47-63Hz, 0.8a Max. ; Output voltage: 3-48V DC
Inrush current: 60a Max.
Line Current: 1% Max.
Efficiency: 70-82%
output voltage: 3-3.9v/ Max. 4.0a, output power 16w Max.
output voltage: 4.-6.0v/ Max, 4.0a, output power 24w Max.
output voltage: 6.1-7.4v/ Max.3.5a, output power 30w Max.
output voltage: 7.5-9.9v/ Max.3.5a, output power 30w Max.
output voltage: 10.0-14.9v Max. 3.0a, output power 30w Max.
output voltage: 15.0-19.9v Max. 2.0a output power 30w Max.
output voltage: 20.0-29.9v Max. 1.5a, output power 30w Max.
output voltage: 30.0-39.9v Max. 1.0a, output power 30w Max.
output voltage: 40.0-50.0v Max. 0.75a, output power 30w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
