PA1008T4 USB adapter, wireless adapter, power adapter with UK AC power cord,Adapter /Adattatore/ adaptateur/ Adapter/adaptador/ adapter/ sovitin/ adaptor/адаптер made in China

Switching adapter/adattatore di commutazione/ commutation adaptateur/ Switching-Adapter/ adaptador de conmutación/ kapcsolóüzemű adapter/ kytkentä sovittimen/ comutarea adaptor/Переключение адаптеров

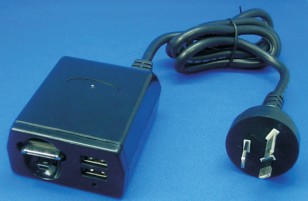

Model: PA1008T4
USB adapter, wireless adapter, power adapter with UK AC power cord
1-10w Series wall type adapter
Input:90-264v AC 47-63Hz, 0.3a Max. ; Output voltage: 3-30V DC
Inrush current: 40a Max.
Line Current: 1% Max.
Efficiency: 70-82%
Spec: output voltage: 3-4.8v/ Max. 1.5a, output power 7.5w Max.
output voltage: 4.9-7.0v/ Max, 1.5a, output power 8.0w Max.
output voltage: 7.1-8.9v/ Max.1.14a, output power 8.0w Max.
output voltage: 9.0-10.5v/ Max.1.0a, output power 9.3w Max.
output voltage: 10.6-15.0v Max. 0.85a, output power 9.3w Max.
output voltage: 15.1-21.0v Max. 0.6a output power 9.3w Max.
output voltage: 21.1-30.v Max. 0.43a, output power 9.3w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
