PA1015C1 Switching adapter/adattatore di commutazione/ commutation adaptateur/ Switching-Adapter/ adaptador de conmutación/ kapcsolóüzemű adapter/ kytkentä sovittimen/ comutarea adaptor/Переключение адаптеров, Switching adapter powers desktop adapter with AC power cord OEC service china

Switching adapter/adattatore di commutazione/ commutation adaptateur/Switching-Adapter/ adaptador de conmutación/ kapcsolóüzemű adapter/ kytkentä sovittimen/ comutarea adaptor/Переключение адаптеров

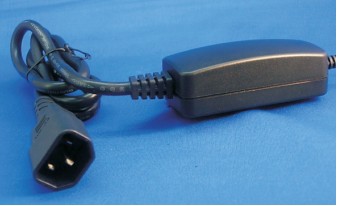

Model: PA1015C1
Switching adapter powers desktop adapter with AC power cord
Input: 90-264v AC 47-63Hz, 0.4a Max.
Inrush current: 40a Max.; Output voltage: 3-30V DC
Line Current: 1% Max.
Efficiency: 70-82%
output voltage: 3.0-4.5v/ Max. 2.6a, output power 18w Max.
output voltage: 4.6-6.9v/ Max, 2.6a, output power 18w Max.
output voltage: 7.0-10.0v/ Max.2.15a, output power 18w Max.
output voltage: 10.1-14.9v/ Max.1.48a, output power 18w Max.
output voltage: 15.0-21.0v Max. 1.0a, output power 18w Max.
output voltage: 21.1-30.0v Max. 0.72a output power 18w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
