PA1015C4 Switching power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä/Comutatie de alimentare/Импульсный блок питания, Power adapter, wireless adapter, wireless adaptor with AC power cord china power factory

Switching power supply/Alimentatore switching/ Alimentation à découpage/ Schaltnetzteil/ Fuente de alimentación conmutada/ Kapcsolóüzemű tápegység/ Kytkentävirtalähteellä/Comutatie de alimentare/Импульсный блок питания

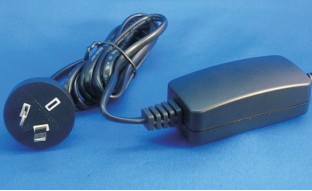

Model: PA1015C4
Power adapter, wireless adapter, wireless adaptor with AC power cord
Input: 90-264v AC 47-63Hz, 0.4a Max. ; Output voltage: 3-30V DC
Inrush current: 40a Max.
Line Current: 1% Max.
Efficiency: 70-82%
output voltage: 3.0-4.5v/ Max. 2.6a, output power 18w Max.
output voltage: 4.6-6.9v/ Max, 2.6a, output power 18w Max.
output voltage: 7.0-10.0v/ Max.2.15a, output power 18w Max.
output voltage: 10.1-14.9v/ Max.1.48a, output power 18w Max.
output voltage: 15.0-21.0v Max. 1.0a, output power 18w Max.
output voltage: 21.1-30.0v Max. 0.72a output power 18w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
